ATIS
The Automotive Test and Information System ATIS is a comprehensive knowledge base with information to help the automotive technician diagnose problems in cars.
ATIS contains a large database with information on all motor management related electronic components in a car. This includes:
- a description of how the component functions
- wiring diagrams
- information on the component location, including photographs
- instructions for connecting the measuring instrument to the component
- information on how to diagnose the component
- example signals of a good functioning component.
ATIS contains this information for over 3500 different vehicles of various brands and models.
Select Brand, model and engine type and get access to a wealth of information on that specific car, including detailed component information and electrical diagrams.
Instant measuring

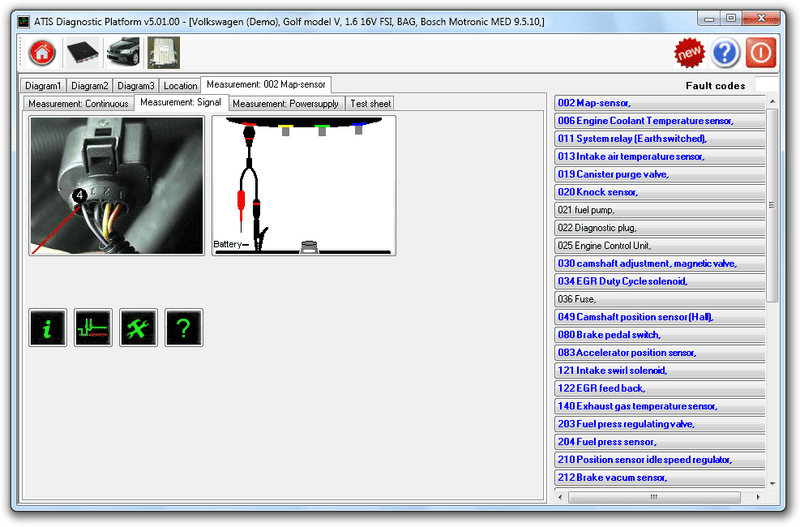

A unique feature of ATIS is the direct coupling to the measuring instrument. One click on a button on the page describing how to measure on a specific component launches the measurement software and loads the preferred settings for that component into the instrument.

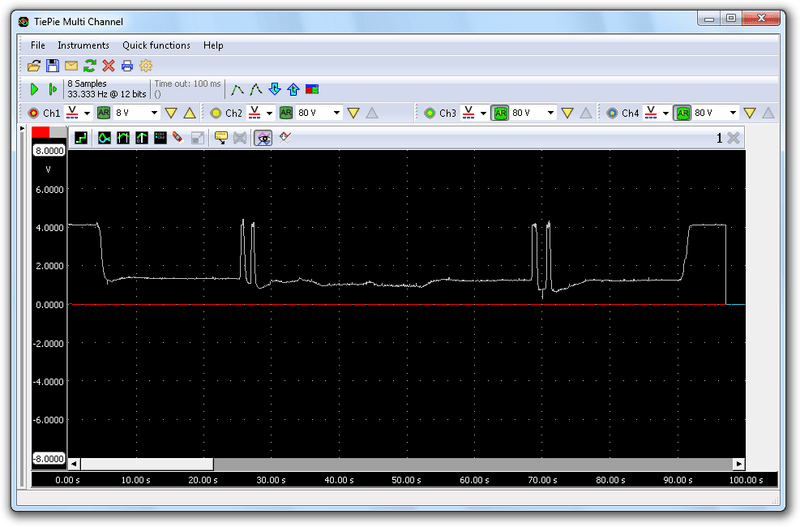

Even a reference signal is loaded, showing what the signal should look like in well functioning vehicle. The technician can immediately start measuring and can compare the measured signal to this known good signal.
Features
ATIS is available in two versions, ATIS Lite and ATIS Pro.
| Feature comparison | |||
|---|---|---|---|
| Feature | Description | ATIS Lite | ATIS Pro |
| Component descriptions | Describes each component and its role in the automotive system. |  |
|
| Component connection information | Shows the location (with photographs) of the component and describes how to connect the measuring instrument. | |
|
| Diagnostic information | Diagnostic information is available for each component, showing signal levels, signal shapes etc. | |
|
| Measurement instruction pages | Describes the measurement procedures for each component, required to reproduce the reference signal measurement. | |
|
| Scope pre settings | For each component, pre settings and a reference signal can be loaded automatically. | |
|
| Sensor measurements | Scope settings for all types of sensors available for petrol and diesel engines. | |
|
| Actuator measurements | Scope settings for all types of actuators available for petrol and diesel engines. | |
|
| Ignition measurements | Settings for both primary and secondary ignition measurements, for all ignition systems. | |
|
| Current measurements | Pre settings for measuring current using 80A and 600A current clamps. | |
|
| Compression measurements | Settings for relative compression measurements for 2 to 12 cylinder engines. | |
|
| Alternator ripple measurements | Pre settings for alternator functionality testing. | |
|
| Connectivity measurements | Pre settings for testing connectors and wiring for proper connectivity. | |
|
| DMM function | Various DMM measurements like voltage, current, min/max, duty-cycle and frequency etc. | |
|
| Automotive related measurements | Database with more than 350 generic automotive components and diagnostic guidance. Contains more than 500 scope pre settings. | |
|
| Brand related labscope measurements | Database with more than 3500 European and Asian cars. For each car more than 25 components with scope pre settings and diagnostic information are available. |  |
|
| Electrical wiring diagrams | For each car a wiring diagram of the engine management systems, ABS, Airco etc. is available | |
|
| Fault code diagnose guidance pages | After obtaining a fault code with your scanner, enter it in ATIS to get a full description and diagnostic guidance. | |
|
Prices and ordering
ATIS Lite
ATIS Lite is available as part of the Automotive Diagnostics Kit and as a separate product.
| ATIS Lite Models | ||
|---|---|---|
| Model name | Code | Price |
| Dutch | ATIS-Lite-NL | € 276.00  |
| English | ATIS-Lite-EN | € 276.00 |
ATIS Pro
ATIS Pro is available in seven different languages and with optional update subscription. The initial purchase of ATIS Pro includes a dongle. The minimum subscription period is two years. Updates are released every six months.
| ATIS Pro Models | ||
|---|---|---|
| Model name | Code | Price |
| Dutch, single issue | ATIS-Pro-Single-NL | € 380.00 |
| English, single issue | ATIS-Pro-Single-EN | € 485.00 |
| German, single issue | ATIS-Pro-Single-DE | € 485.00 |
| French, single issue | ATIS-Pro-Single-FR | € 485.00 |
| Italian, single issue | ATIS-Pro-Single-IT | € 485.00 |
| Spanish, single issue | ATIS-Pro-Single-ES | € 485.00 |
| Portugese, single issue | ATIS-Pro-Single-PT | € 485.00 |
